CPU

AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.)

Chipset

AMD A620

Memory

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor:

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

• Support for DisplayPort 1.4 version.

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3.
• Support for native HDMI 2.1 TMDS compatible ports.

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 port on the back panel
• 1 x USB 2.0/1.1 port on the back panel Chipset:
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper

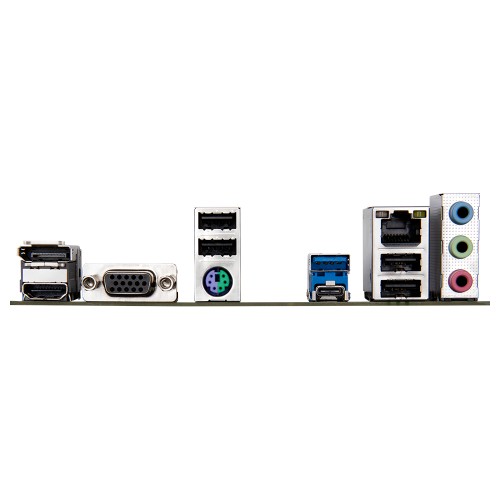

Back Panel Connectors

1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x D-Sub port 1 x RJ-45 port 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control

• Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash Support for Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version) LAN bandwidth management software

Operating System

Support for Windows 11 64-bit Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
