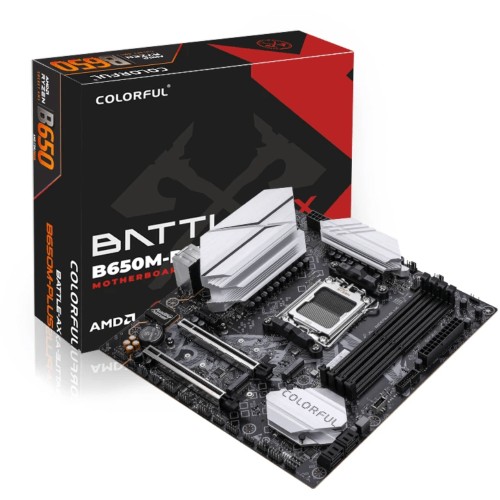

COLORFUL BATTLE-AX B650M-PLUS WIFI V15
Customized Frostbite Cooling Armor for the Tomahawk Series, Combined with Fully Covered Condensers to Enhance Heat Dissipation Adopting a 10+2+1 phase enhanced power supply design, F.C.C ferrite inductor (Dr MOS 55A) Provide 2 PCIe 5.0 x4 M.2 SSD slots Provide 1 USB 3.2 Gen 1 5Gbps Type-C and 1 USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface Equipped with Realtek 2.5G high-speed wired network card and AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2 Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory I/O backplane supports one click BIOS upgrade function Six major protective technologies for more stable product operation Strict testing of 200 processes ensures quality assurance PCB atomization process fully upgraded
| ITEM | SPECIFICATION |
| MODEL | BATTLE-AX B650M-PLUS WIFI V15 |
| CHIPSET | AMD B650 |
| FORM FACTOR | Micro-ATX (245 x 245 mm) |
| COLOR | BATTLE-AX Series |
| CPU SUPPORT | AMD Ryzen™ 7000 Series (Socket AM5) |
| MEMORY SUPPORT | 4× DDR5 DIMM slots, up to 192 GB total (48 GB per slot) |
| MEMORY SPEED | DDR5 4800–6200 MHz (OC), Dual Channel, XMP support |
| EXPANSION SLOTS | - 1× PCIe 5.0 x16 |
| - 1× PCIe 4.0 x16 (x4 mode) | |
| - 2× PCIe 4.0 x1 | |
| M.2 SLOTS | - M.2_1: PCIe 5.0/4.0 x4 (2242/2260/2280, CPU lane) |
| - M.2_2: PCIe 5.0/4.0 x4 (2242/2260/2280, CPU lane) | |
| SATA | 4× SATA 6Gb/s, supports RAID 0/1/10 |
| GRAPHICS OUTPUTS | - 1× DisplayPort 1.2 (4K @ 60Hz) |
| - 1× HDMI 1.4 (4K @ 30Hz) | |
| REAR I/O PORTS | - 4× USB 2.0 |
| - 2× USB 3.2 Gen1 Type-A | |
| - 1× USB 3.2 Gen2 Type-A | |
| - 1× USB 3.2 Gen1 Type-C | |
| - 1× DP 1.2 | |
| - 1× HDMI 1.4 | |
| - 1× 2.5G LAN (Realtek RTL8125) | |
| - 2× Wi-Fi 6 antenna connectors (AX200, Bluetooth 5.1) | |
| - 3× Audio jacks | |
| - 1× BIOS update button | |
| INTERNAL HEADERS | - 1× CPU fan, 3× system fan, 1× water pump |
| - 2× USB 2.0 (expandable to 4 ports) | |
| - 1× USB 3.2 Gen1 (expandable to 2 ports) | |
| - 1× USB 3.2 Gen1 Type-C | |
| - 2× 5V ARGB (3-pin), 2× 12V RGB (4-pin) | |
| - 1× Front panel audio, 1× Power/Reset (front panel) | |
| - 1× Serial port, 1× Horn, 1× Diagnostic, 1× Clear CMOS jumper, 1× BIOS burner | |
| AUDIO | Realtek ALC897, 7.1-channel HD audio |
| BIOS | 128M UEFI BIOS, multi-language support |
| POWER MANAGEMENT | Supports S3/S4 wake-up, S5 network wake-up, USB wake-up, auto boot |
| MONITORING | CPU/System fan control, temperature and voltage monitoring |
