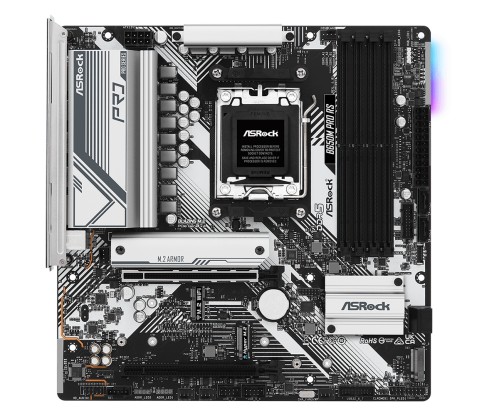

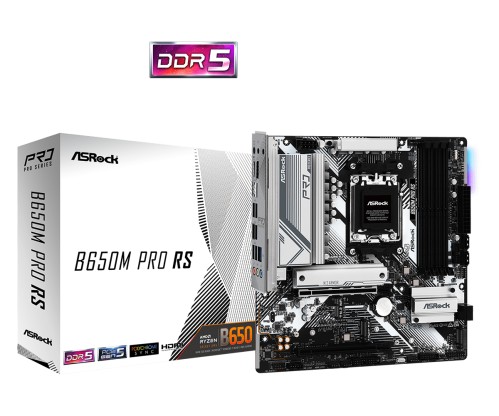

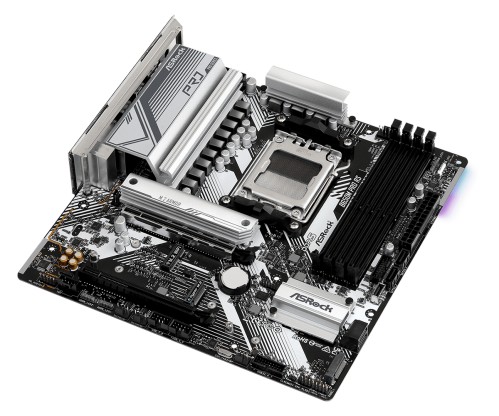

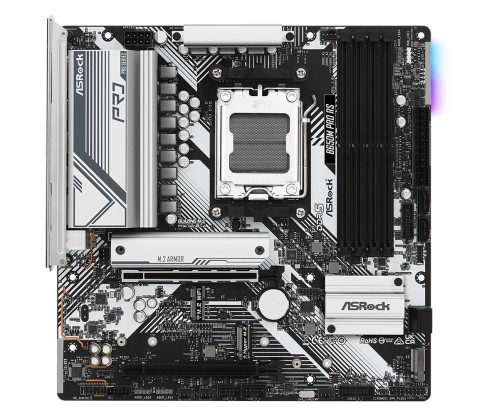

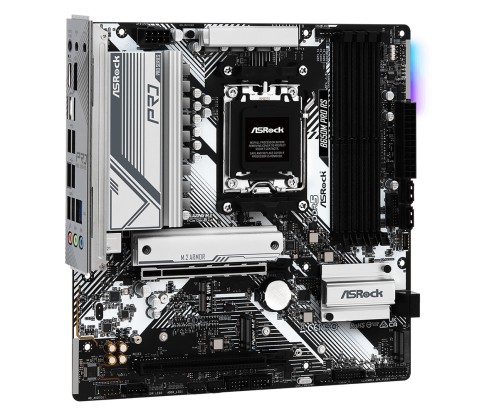

ASROCK B650M PRO RS (CONFIG/BUNDLE ONLY)

ASROCK B650M PRO RS (CONFIG/BUNDLE ONLY)

Brand:ASROCK
Price:
40,900 DZD
Quantity:

Description

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors 8+2+1 Power Phase, Dr.MOS 4 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 1 USB 3.2 Gen2 Type A+C (Rear) 1 USB 3.2 Gen1 Type-C (Front) 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front) Dragon 2.5G LAN

Unique Feature Superb Productivity

  • PCIe Gen5 (M.2)
  • Dual Channel DDR5 Rock-Solid Durability
  • 8+2+1 Power Phase, 50A Dr.MOS
  • Pre-Installed I/O Shield Ultrafast Connectivity
  • 2.5G LAN EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer EZ Troubleshooter
  • ASRock Post Status Checker CPU
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. Chipset

  • AMD B650 Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List for more information. BIOS

  • 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio

  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

  • Nahimic Audio LAN

  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

  • Dragon RTL8125BG

  • Supports Dragon 2.5G LAN Software

  • Smart Auto Adjust Bandwidth Control

  • Visual User Friendly UI

  • Visual Network Usage Statistics

  • Optimized Default Setting for Game, Browser, and Streaming Modes

  • User Customized Priority Control Slots CPU:

  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

  • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset:

  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  • Supports AMD CrossFire™

  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks Storage CPU:

  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10 USB

  • 1 x USB 3.2 Gen2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)

*All USB ports support ESD Protection Connector

  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN13/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN13/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O

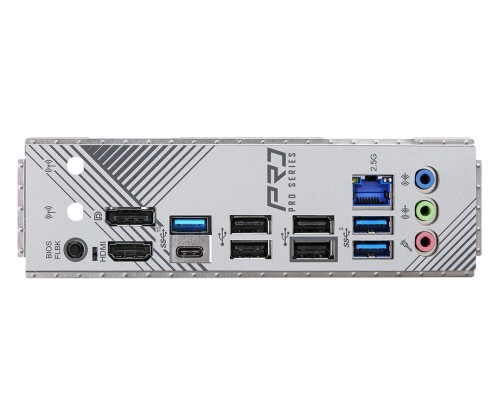

  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC* UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories

  • 1 x User Manual
  • 2 x SATA Data Cables
  • 4 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket Form Factor
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • 2oz Copper PCB OS
  • Microsoft Windows® 10 64-bit / 11 64-bit Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
